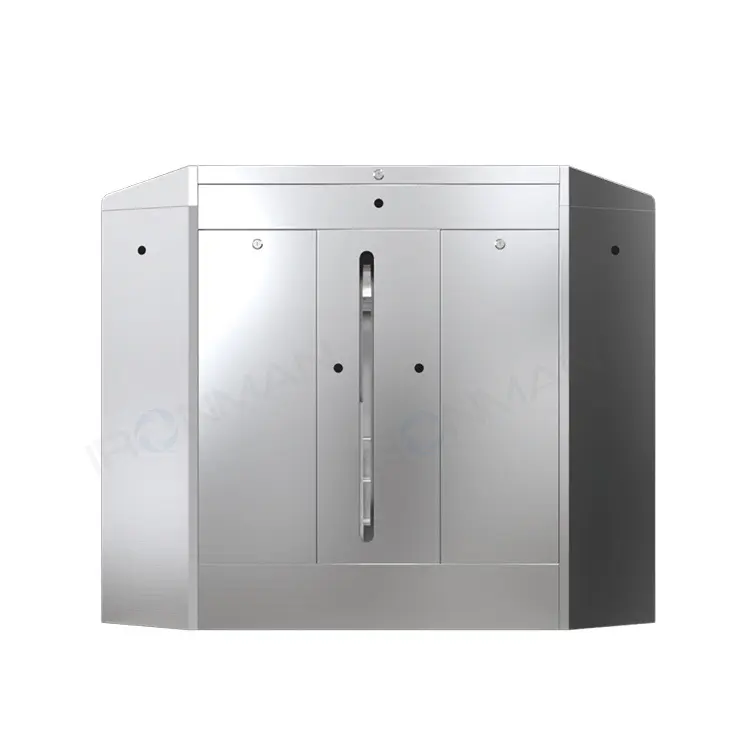

Infrared Sensor Flap Barrier
IM.Y303
IM.Y303 is a high quality pedestrian access gate with 6 zone infrared detector, smart alarm display and a stainless steel body that is resistant to corrosion. It has a sophisticated safety detector and a sleek shape that is designed to work anywhere, whether it is in a corporate lobby or a transport terminal without any disruption to style or durability.
-
Passage Width：550mm
-
Material：Stainless Steel 304
-
Passing Speed：≤ 40 people/min
-
Sensing System：6-point infrared sensors
-
Dimensions：length 1200* width 280* height980mm
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
The infrared sensor flap barrier is designed to be used in modern pedestrian traffic control and provides speed and accuracy. It has 6 pairs of infrared detectors which are actively used to monitor entry conditions at real time. Consequently, the gate is fast to differentiate authorized and unauthorized attempts thereby enhancing safety and efficiency.
The system will be able to respond immediately through its advanced sensors such as detecting tailgating, reverse movement, or blocked lanes. Moreover, LED interface and optional voice guidance make the interaction with the user easier in the periods of high traffic. Its stainless steel facade is also wear-proof which guarantees its durability in strenuous communal settings.
This infrared sensors screen gate also accommodates a variety of access keys that may include RFID cards, QR codes or face recognition devices. It is easy to integrate and can be a plug and play on any existing access control platform.
Features
- Higher sensitivity infrared detection by a pair of 6.
- Intrusion and tailgating prevention in real-time.
- Anti rust stainless steel chassis.
- LED status lights and voice prompts (option).
- Slim houses are made to fit small inside/outside passageways.
- Bypass fire alarm or power failure.
- Integrates with all types of access control systems.
- Silent flap retraction- user friendly.
Moreover, it is easy to maintain. Internal modules are easy to access through the lockable top panel by technicians and firmware upgrades ensure long term flexibility. Regardless of its implementation in transport hubs or educational premises, it provides a dependable and intelligent access control of pedestrians with the minimum inconveniences.
- Product Details
- Specifications
- Technical & Features
- Adaptability
- Application
Product Details
Industry-Grade Material & Structure
Infrared sensor flap barrier integrates fast-response access with advanced detection technology, enabling precise control in busy pedestrian environments. Its 6-pair infrared sensors, stainless steel finish, and LED guidance make it suitable for commercial buildings, metro stations, and school campuses.
- Material：Stainless Steel 304，Upper cover 1.2mm，Housing body 1.0mm
- Corrosion Resistance: Passed ISO 9227 Salt Spray Test (2,000 hours rust-free)
- Temperature Range: -30C to +70C (Indoor/Outdoor Compatibility)
- Protection Rating: Water/Dust Resistance (Stable operation in heavy rain/dust)
Specifications
Core Technical Specifications
| Dimensions | length 1200* width 280* height980mm |
| Sensing System | 6-point infrared sensors |
| Drive System | Brushed Motor |
| Passing Speed | ≤ 40 people/min |
| Passage Width | 550mm |
| Power Supply Voltage | AC220±10%V 50HZ |
| Integration | Supports ID card/IC card/QR code recognition/RS485/relay interfaces |
Technical & Features
Technical and security features
Precise Monitoring, Tight Defense：
Six pairs of infrared detectors form an all - round monitoring network. Like sharp "electronic eyes", they accurately capture every move of pedestrians. Whether it is an uninvited guest trying to break in by force, a tailgating behavior, or an obstacle in the passage, nothing can escape its monitoring. It will issue an alarm immediately, eliminate potential safety hazards, and ensure foolproof passage safety.
Timely Warning, Security Upgrade：
When abnormal situations occur, such as unauthorized passage attempts or equipment failures, the alarm display system of the pedestrian passage gate will be activated immediately. Through eye - catching flashing lights and clear sound warnings, it can quickly attract the attention of relevant personnel for timely handling, minimizing security risks and building a solid security line for the place.
Sturdy and Durable, Stylish and Versatile：
With a high - quality stainless - steel frame, the IM.Y303 Flap Barrier is highly durable and can calmly cope with high - intensity daily use and complex and changeable environmental challenges. Its simple and smooth appearance design combines modern aesthetics and practicality. Whether it is a solemn office building, a busy transportation hub, or a vibrant commercial center, it can blend in perfectly and become a unique scenic line.
Adaptability
Global Market Adaptability
- Voltage: 100-240V wide-range input (global grid compatibility)
- Language Support: 24/7 English service
- Certification：CE,FCC
Application
Application Scenarios
- Office complexes and corporate buildings
- Subway stations, airports, and train terminals
- Stadiums, arenas, and entertainment venues
- Schools, universities, and residential communities
- Shopping malls, exhibition centers, and industrial facilities
