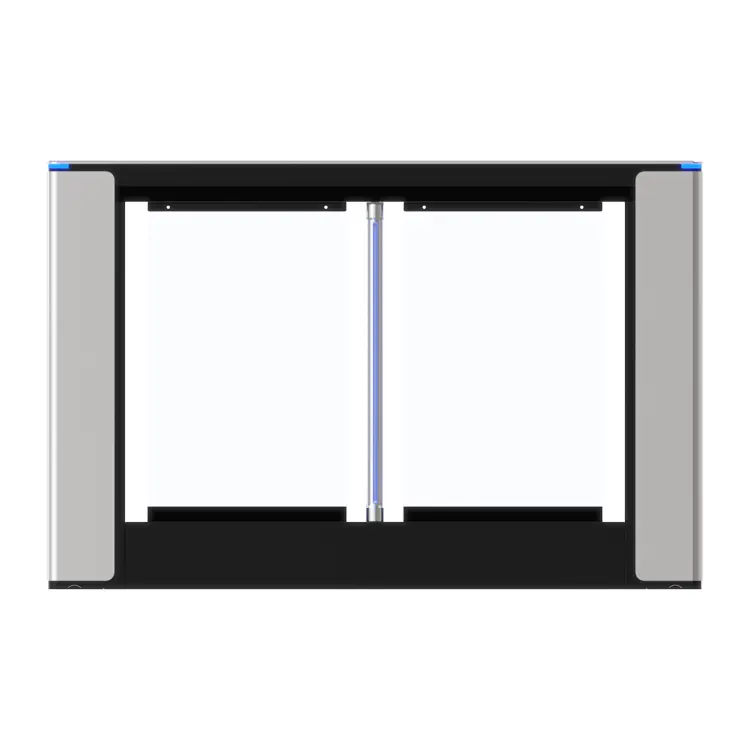

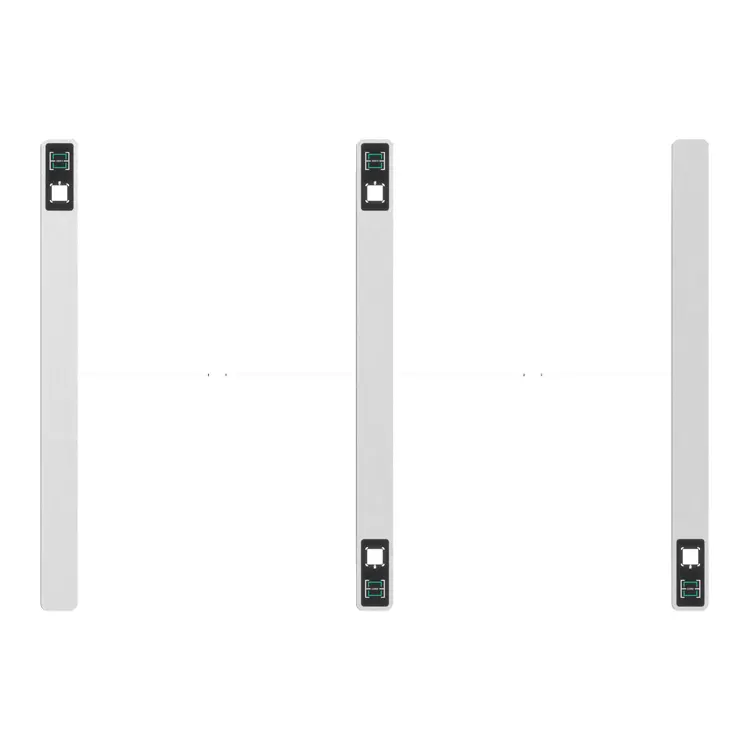

Swing Barrier Gate with Card Reader
IM.XS.06
The IM.XS.06 Swing Barrier is an advanced access control solution engineered for efficient and secure pedestrian management in environments such as office buildings, commercial centers, and public facilities. Made primarily from high-quality aluminum alloy, it offers a perfect balance of durability, modern design, and intelligent functionality. Its customizable surface patterns enable seamless integration with diverse architectural styles and branding needs, ensuring both performance and aesthetic harmony.
-
Channel Width: ≤1100mm
-
Traffic Speed: ≤ 40 people/min
-
Infrare Detection Sensor: 6 pairs
-
Material: Precision aluminium alloy moulding+baking paint SPCC
-
Dimensions (Customization Accepted): length 1500* width 120* height 980mm
Face Recognition
LED Display
8 Pairs of Infrared Detectors
QR
Swing barrier gate with card reader is constructed from precision aluminum alloy combined with baked paint SPCC, offering strong durability and a refined finish. Its slim profile fits well into narrow spaces without compromising structural stability. Furthermore, the swing panel—available in tempered glass or acrylic—delivers quiet and smooth movement during operation.
The swing barrier gate features an integrated RFID reader, which enables fast identity verification. Once a valid card is detected, the swing panel opens automatically. The system supports bi-directional control and allows flexible configuration of entry and exit logic.
For enhanced safety, the gate includes 8 pairs of infrared sensors. These detect tailgating and prevent accidental collisions. In case of an emergency or power failure, the arms automatically open, ensuring safe evacuation.
In addition to its core security features, the gate supports real-time system feedback through LED indicators and optional voice prompts. It provides a standard channel width of ≤800 mm, which can be customized for wheelchair access or wider lanes.
Advantage
- Designed for efficient pedestrian flow management in high-traffic environments with minimal waiting time
- Compact, slim cabinet structure allows seamless installation in narrow or architecturally sensitive spaces
- Smooth swing arm motion ensures a quiet and comfortable access experience for daily users
- Supports both entry and exit control with fast response to reduce congestion at peak hours
- Advanced motor drive technology enhances performance stability and reduces mechanical wear
- Offers high adaptability through support for various access systems including RFID and membership platforms
- Modern industrial design complements professional and commercial interior aesthetics
- Emergency auto-open function improves safety compliance in critical situations such as fire or power failure
- Multi-sensor coordination ensures accurate detection of passage behavior and enhances anti-tailgating capability
- Flexible system integration enables centralized monitoring and real-time access management across multiple entry points
The swing barrier gate with card reader connects easily to existing access control systems. It supports RS485, Wiegand, and TCP/IP protocols. As a result, integration into centralized platforms is simple and cost-effective.
This gate offers speed, safety, and a clean modern design. It helps reduce manual labor, improves access efficiency, and strengthens building security—all in one compact solution.
- Product Details
- Specifications
- Applications
- Installation and Use
- FAQ
Product Details
Functional Features
- Contactless RFID card verification for fast and secure entry
- Smooth swing-arm motion with low noise and high durability
- Bi-directional control with adjustable logic settings
- Built-in sensors to prevent tailgating and accidental collision
- Fail-safe function automatically opens arms during power loss
- LED indicators for direction and gate status
- Easy integration with access control, time attendance, or visitor management systems
- Sleek design suitable for modern commercial and residential settings
- Optional support for additional authentication modules (QR code, fingerprint, face recognition)
Specifications
Core Technical Specifications
| Parameter | Specification |
| Housing Material | Precision aluminium alloy moulding+baking paint SPCC |
| Swing Panel Material | Acrylic / Tempered Glass / Optional Metal |
| Dimensions (L×W×H) | 1500 × 120 × 980 mm (customizable) |
| Passage Width | ≤1100mm |
| Authentication | Built-in RFID card reader (13.56MHz / 125KHz) |
| Power Supply | AC 100–240V, 50/60Hz |
| Working Voltage | 24V DC |
| Opening Speed | 0.3–0.8 seconds |
| Throughput Rate | ≤ 40 people/min |
| Control Interface | RS485 / Wiegand / Dry Contact |
| Working Temperature | -20°C to +60°C |
| Ingress Protection | IP54 (Indoor/Semi-outdoor use) |
| Emergency Mode | Auto-open on power failure or fire signal |
| Lifespan | ≥5 million cycles |
Applications
Typical Applications
- Office buildings
- Residential lobbies
- Fitness centers
- Government facilities
- University libraries and labs
Installation and Use
Installation Steps
Before installation, ensure that the site is clean, level, and capable of supporting the gate’s weight and operation. Use the supplied mounting template to mark drill holes accurately. Core cables for power supply (AC 100–240V) and communication lines (RS485, Wiegand, or TCP/IP) should be laid in advance, routed through protective conduits, and properly grounded.
Position the gate cabinet based on lane configuration and passage width requirements. For multi-lane setups, ensure accurate spacing and alignment. Once in position, fix the gate securely using expansion bolts. Open the access panel to complete internal wiring—this includes connecting the power supply, motor, infrared sensors, LED indicators, and the integrated RFID reader.
After all connections are complete, power on the system and perform initial testing. Confirm that the swing arms operate smoothly in both directions, and that card verification triggers a fast and accurate opening response. Configure entry/exit logic, delay time, and access permissions via control software or hardware settings, depending on your system design.
Use
During normal operation, users present a valid RFID card at the reader. Upon successful verification, the swing arm opens automatically to allow one person to pass. Sensors detect unauthorized tailgating or obstruction, and the gate responds by holding position or triggering an alarm, depending on the configured security mode.
In case of a power failure or fire alarm, the swing arms automatically move to the open position to allow free passage for evacuation. It is recommended to integrate the gate with the building’s fire control system for centralized emergency management.
Routine maintenance includes cleaning sensor lenses, checking swing arm movement, verifying card reader response, and confirming that status indicators are functioning correctly. Prevent dust or moisture from entering the internal cabinet and avoid using strong solvents on exterior surfaces. Service should be conducted by qualified technicians to maintain warranty coverage and ensure operational safety.
FAQ
1. Is the card reader built into the gate?
Yes, the RFID card reader is integrated into the gate housing for seamless user access.
2. Can I use this gate outdoors?
It is designed for indoor and semi-outdoor environments (IP54). For fully outdoor use, weatherproof customization is recommended.
3. What type of cards does it support?
It supports 13.56 MHz (MIFARE) and 125KHz (EM) card formats by default. Other formats can be customized.
4. Can this gate work with our existing access control system?
Yes. It supports RS485, Wiegand, and dry contact input, making it compatible with most mainstream access control systems.
5. What happens during a power failure?
The gate automatically opens in emergency or power-off conditions to allow free passage.
